Understanding User Interface in Android - Part 1: Layouts

This information is very useful for the android beginners

An Activity displays the user interface of your application, which may contain widgets like buttons, labels, text boxes, etc. Typically, you define your UI using an XML file (for example, the main.xml file located in the res/layout folder), which may look like this:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:orientation="vertical"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    >

    <TextView

        android:layout_width="fill_parent"

        android:layout_height="wrap_content"

        android:text="@string/hello"

        />

</LinearLayout>

During runtime, you load the XML UI in the onCreate() event handler in your Activity class, using the setContentView() method of the Activity class:

    @Override

    public void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.main);

    }

What happens is that during compilation time, each element in the XML file is compiled into its equivalent Android GUI class, with attributes represented by methods. The Android system then creates the UI of the Activity when it is loaded.

While it is always easier to build your UI using a XML file, there are times where you need to build your UI dynamically during runtime (for example, when writing games). Hence, it is also possible to create your UI entirely using code.

Views and ViewGroups

An Activity contains Views and ViewGroups. A View is a widget that has an appearance on screen. Examples of widgets are buttons, labels, text boxes, etc. A View derives from the base class android.view.View.

One or more Views can be grouped together into a ViewGroup. A ViewGroup (which is by itself is a special type of View) provides the layout in which you can order the appearance and sequence of views. Examples of Viewgroups are LinearLayout, FrameLayout, etc. A ViewGroup derives from the base class android.view.ViewGroup.

Android supports the following ViewGroups:

• LinearLayout
• AbsoluteLayout
• TableLayout
• RelativeLayout
• FrameLayout
• ScrollView

The following sections will discuss each ViewGroup in more details. Note that in practice, it is common to nest different types of layouts to create the UI you want.

Creating the Sample Project

For this article, create a new Android project and name it as shown in the Below Figure.

Eclipse provides only minimal support for designing Android UI and so you won't be able to drag-and-drop of widgets on a design surface. Instead, you can use the free DroidDraw tool available at http://www.droiddraw.org/. Below Figure shows the DroidDraw in action. You can drag-and-drop widgets onto different layouts and then use it to generate its equivalent XML code. While DroidDraw is not perfect, it is very useful to get you started with Android UI design and is a good tool to learn the various Views and ViewGroups in Android.

You can also download standalone versions of DroidDraw for Windows, Mac OS X, and Linux.

LinearLayout

The LinearLayout arranges views in a single column or single row. Child views can either be arranged vertically or horizontally. To see how LinearLayout works, let's modify the main.xml file in the project:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:orientation="vertical"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    >

    <TextView

        android:layout_width="fill_parent"

        android:layout_height="wrap_content"

        android:text="@string/hello"

        />

</LinearLayout>

In the main.xml file, observe that the root element is <LinearLayout> and it has a <TextView> element contained within it. The <LinearLayout> element controls the order in which the views contained within it appear.
Each View and ViewGroup has a set of common attributes, some of which are shown in the Below Table.

Attribute	Description
layout_width	Specifies the width of the View or ViewGroup
layout_height	Specifies the height of the View or ViewGroup
layout_marginTop	Specifies extra space on the top side of the View or ViewGroup
layout_marginBottom	Specifies extra space on the bottom side of the View or ViewGroup
layout_marginLeft	Specifies extra space on the left side of the View or ViewGroup
layout_marginRight	Specifies extra space on the right side of the View or ViewGroup
layout_gravity	Specifies how child Views are positioned
layout_weight	Specifies how much of the extra space in the layout to be allocated to the View
layout_x	Specifies the x-coordinate of the View or ViewGroup
layout_y	Specifies the y-coordinate of the View or ViewGroup

Note that some of these attributes are only applicable when a View is in certain specific ViewGroup(s). For example, the layout_weight and layout_gravity attributes are only applicable if a View is either in a LinearLayout or TableLayout.

For example, the <TextView> element above has its width filling up the entire width of its parent (which is the screen in this case) using the fill_parent constant. Its height is indicated by the wrap_content constant, which means that its height is the height of its content (in this case, the text contained within it). If you do not wish to have the <TextView> view occupy the entire row, you can set its layout_width attribute to wrap_content, like this:

<TextView

    android:layout_width="wrap_content"

    android:layout_height="wrap_content"

    android:text="@string/hello"

    />

This will set the width of the view to be equal to the width of the text contained within it. You can also set the width to an absolute value, like this:

<TextView

    android:layout_width="105px"

    android:layout_height="wrap_content"

    android:text="@string/hello"

    />

In this case, the width is set to 105 pixels wide. Let's modify the main.xml file by adding a <Button> view as shown below:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    xmlns:android="http://schemas.android.com/apk/res/android"

    >

    <TextView

        android:layout_width="105px"

        android:layout_height="wrap_content"

        android:text="@string/hello"

        />

    <Button

        android:layout_width="100px"

        android:layout_height="wrap_content"

        android:text="Button"

        />

</LinearLayout>

The default orientation of LinearLayout is set to horizontal. If you want to change its orientation to vertical, set the orientation attribute to vertical, like this:

<LinearLayout

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    android:orientation="vertical"

    xmlns:android="http://schemas.android.com/apk/res/android"

    >

InLinearLayout, you can apply the layout_weight and layout_gravity attributes to views contained within it, as the following modifications to main.xml shows:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    xmlns:android="http://schemas.android.com/apk/res/android"

        android:orientation="vertical"

    >

    <TextView

        android:layout_width="105px"

        android:layout_height="wrap_content"

        android:text="@string/hello"

        />

    <Button

        android:layout_width="100px"

        android:layout_height="wrap_content"

        android:text="Button"

        android:layout_gravity="right"

        android:layout_weight="0.2"

        />

    <EditText

        android:layout_width="fill_parent"

        android:layout_height="wrap_content"

        android:textSize="18sp"

        android:layout_weight="0.8"

        />

</LinearLayout>

Below Figure shows that the button is aligned to the right of its parent (which is the LinearLayout) using the layout_gravity attribute. At the same time, you use the layout_weight attribute to specify the ratio in which the Button and EditText views occupy the remaining space on the screen. The total value for the layout_weight attribute must be equal to 1.

AbsoluteLayout

The AbsoluteLayout lets you specify the exact location of its children. Consider the following UI defined in main.xml:

<?xml version="1.0" encoding="utf-8"?>

<AbsoluteLayout

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    xmlns:android="http://schemas.android.com/apk/res/android"

    >

    <Button

        android:layout_width="188px"

        android:layout_height="wrap_content"

        android:text="Button"

        android:layout_x="126px"

        android:layout_y="361px"

        />

    <Button

        android:layout_width="113px"

        android:layout_height="wrap_content"

        android:text="Button"

        android:layout_x="12px"

        android:layout_y="361px"

        />

</AbsoluteLayout>

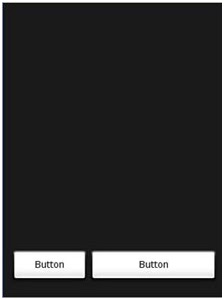

Below Figure shows the two Button views located at their specified positions using the android_layout_x and android_layout_y attributes.



Author's Note. You should ideally use AbsoluteLayout when you need to reposition your views when there is a change in the screen rotation.

TableLayout

The TableLayout groups views into rows and columns. You use the <TableRow> element to designate a row in the table. Each row can contain one or more views. Each view you place within a row forms a cell. The width for each column is determined by the largest width of each cell in that column.

Populate main.xml with the following elements and observe the UI as shown in Below Figure.

<?xml version="1.0" encoding="utf-8"?>

<TableLayout

    xmlns:android="http://schemas.android.com/apk/res/android"

    android:layout_height="fill_parent"

    android:layout_width="fill_parent"

    android:background="#000044">

    <TableRow>

        <TextView

            android:text="User Name:"

            android:width ="120px"

            />

        <EditText

            android:id="@+id/txtUserName"

            android:width="200px" />

    </TableRow>

    <TableRow>

        <TextView

            android:text="Password:"

            />

        <EditText

            android:id="@+id/txtPassword"

            android:password="true"

            />

    </TableRow>

    <TableRow>

        <TextView />

        <CheckBox android:id="@+id/chkRememberPassword"

            android:layout_width="fill_parent"

            android:layout_height="wrap_content"

            android:text="Remember Password"

            />

    </TableRow>

    <TableRow>

        <Button

            android:id="@+id/buttonSignIn"

            android:text="Log In" />

    </TableRow>

</TableLayout>



Note that in the above example, there are two columns and four rows in the TableLayout. The cell directly under the Password TextView is populated with an empty element. If you don't do this, the Remember Password checkbox will then appear under the Password TextView, like that shown in the Below Figure.



RelativeLayout

The RelativeLayout lets you specify how child views are positioned relative to each other. Consider the following main.xml file:

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout

    android:id="@+id/RLayout"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    xmlns:android="http://schemas.android.com/apk/res/android"

    >

    <TextView

        android:id="@+id/lblComments"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:text="Comments"

        android:layout_alignParentTop="true"

        android:layout_alignParentLeft="true"

        />

    <EditText

        android:id="@+id/txtComments"

        android:layout_width="fill_parent"

        android:layout_height="170px"

        android:textSize="18sp"

        android:layout_alignLeft="@+id/lblComments"

        android:layout_below="@+id/lblComments"

        android:layout_centerHorizontal="true"

        />

    <Button

        android:id="@+id/btnSave"

        android:layout_width="125px"

        android:layout_height="wrap_content"

        android:text="Save"

        android:layout_below="@+id/txtComments"

        android:layout_alignRight="@+id/txtComments"

        />

    <Button

        android:id="@+id/btnCancel"

        android:layout_width="124px"

        android:layout_height="wrap_content"

        android:text="Cancel"

        android:layout_below="@+id/txtComments"

        android:layout_alignLeft="@+id/txtComments"

        />

</RelativeLayout>

Notice that each view embedded within the RelativeLayout have attributes that allow them to align with another view. These attributes are:

• layout_alignParentTop
• layout_alignParentLeft
• layout_alignLeft
• layout_alignRight
• layout_below
• layout_centerHorizontal

The value for each of these attributes is the ID for the view that you are referencing. The above XML UI creates the screen shown in the Below Figure.



FrameLayout

The FrameLayout is a placeholder on screen that you can use to display a single view. Views that you add to a FrameLayout is always anchored to the top left of the layout. Consider the following content in main.xml:

<?xml version="1.0" encoding="utf-8"?>

<AbsoluteLayout

    android:id="@+id/widget68"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    xmlns:android="http://schemas.android.com/apk/res/android"

    >

    <FrameLayout

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_x="40px"

        android:layout_y="35px"

        >

        <ImageView

            android:src = "@drawable/androidlogo"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            />

    </FrameLayout>

</AbsoluteLayout>

Here, you have a FrameLayout within an AbsoluteLayout. Within the FrameLayout, you embed an ImageView view. The UI is as shown in the Below Figure.

Note: This example assumes that the res/drawable folder has an image named androidlogo.png.



If you add another view (such as a Button view) within the FrameLayout, the view will overlap the previous view (see also Below Figure):

<?xml version="1.0" encoding="utf-8"?>

<AbsoluteLayout

    android:id="@+id/widget68"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    xmlns:android="http://schemas.android.com/apk/res/android"

    >

    <FrameLayout

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_x="40px"

        android:layout_y="35px"

        >

        <ImageView

            android:src = "@drawable/androidlogo"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            />

        <Button

            android:layout_width="124px"

            android:layout_height="wrap_content"

            android:text="Print Picture"

            />

    </FrameLayout>

</AbsoluteLayout>



You can add multiple views to a FrameLayout, but each will stack on top of the previous one.

ScrollView

A ScrollView is a special type of FrameLayout in that it allows users to scroll through a list of views that occupy more space than the physical display. The ScrollView can contain only one child view or ViewGroup, which normally is a LinearLayout.

Note: Do not use a ListView together with the ScrollView. The ListView is designed for showing a list of related information and is optimized for dealing with large lists.

The following main.xml content shows a ScrollView containing a LinearLayout, which in turn contains some Button and EditText views:

<?xml version="1.0" encoding="utf-8"?>

<ScrollView

    android:id="@+id/widget54"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    xmlns:android="http://schemas.android.com/apk/res/android"

    >

    <LinearLayout

        android:layout_width="310px"

        android:layout_height="wrap_content"

        android:orientation="vertical"

        >

        <Button

            android:id="@+id/button1"

            android:layout_width="fill_parent"

            android:layout_height="wrap_content"

            android:text="Button 1"

            />

        <Button

            android:id="@+id/button2"

            android:layout_width="fill_parent"

            android:layout_height="wrap_content"

            android:text="Button 2"

            />

        <Button

            android:id="@+id/button3"

            android:layout_width="fill_parent"

            android:layout_height="wrap_content"

            android:text="Button 3"

            />

        <EditText

            android:id="@+id/txt"

            android:layout_width="fill_parent"

            android:layout_height="300px"

            />

        <Button

            android:id="@+id/button4"

            android:layout_width="fill_parent"

            android:layout_height="wrap_content"

            android:text="Button 4"

            />

        <Button

            android:id="@+id/button5"

            android:layout_width="fill_parent"

            android:layout_height="wrap_content"

            android:text="Button 5"

            />

    </LinearLayout>

</ScrollView>

Below Figure shows the ScrollView displaying a scroll bar on the right side of the screen. Users can drag the screen upward to reveal the views located at the bottom of the screen.

Summary

In this article, you have seen the various layouts available in Android to create your UI. In the next installation of this article, I will show you the various views (widgets) that you can use in Android to create your next killer applications.

I got this information from the below source

Sources

http://mobiforge.com/designing/story/understanding-user-interface-android-part-1-layouts

Happy Coding
